Material inspection shows 2205
Super duplex stainless steel woven mesh is a high-performance alloy material that combines austenitic-ferritic duplex structures with molybdenum, offering excellent corrosion resistance and mechanical properties. According to chemical composition, it is mainly divided into two types: UNS32750 and UNS31803:
Chemical Composition
| Steel Grade | C ≤ | Mn ≤ | Si ≤ | S ≤ | P ≤ | Cr | Ni | Mo | Cu ≤ | N |
|---|---|---|---|---|---|---|---|---|---|---|
| UNS32750（2507） | 0.03 | 1.2 | 0.8 | 0.02 | 0.035 | 24/26 | 6.0/8.0 | 3.0/5.0 | 0.5 | 0.24/0.32 |
| UNS31803（2205） | 0.03 | 2.0 | 1.0 | 0.02 | 0.03 | 21/23 | 4.5/6.5 | 2.5/3.5 | ‐ | 0.08/0.20 |
Mechanical Properties
| Steel Grade | Heat Treatment System °C | σb(MPa) ≥ | σs(MPa) ≥ | δ% ≥ | Hardness ≤ | – |
|---|---|---|---|---|---|---|
| Brinell | Rockwell | – | – | – | – | – |
| UNS32750（2507） | 1025–1125 Water Quenched | 800 | 550 | 15 | 310 | 32 |
| UNS31803（2205） | 1020–1100 Water Quenched | 620 | 450 | 25 | 290 | 30.5 |
Weaving Method
Applications
UNS32750 super duplex stainless steel woven mesh is commonly used in oil and gas industry equipment, filtration elements in seawater desalination, or as containers for pulp, power plant equipment, and absorption tower devices, etc.
UNS31803 super duplex stainless steel woven mesh has a wide range of applications in various industrial fields, such as filters for pulp, petrochemical, and seawater desalination industries, and is also commonly used as filtration components for food processing equipment, wastewater treatment systems, and paper bleaching equipment.
Gallery

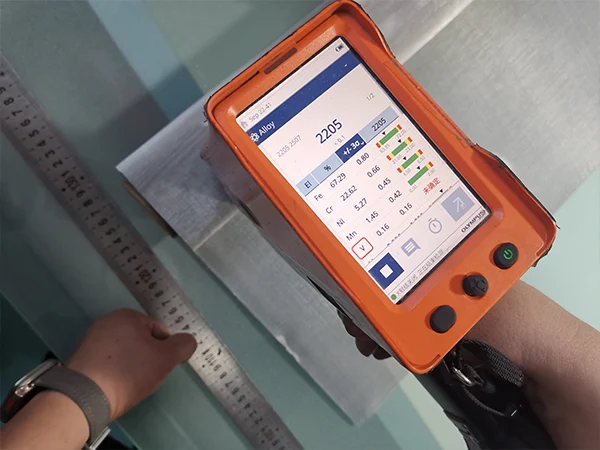

Material inspection shows 2205

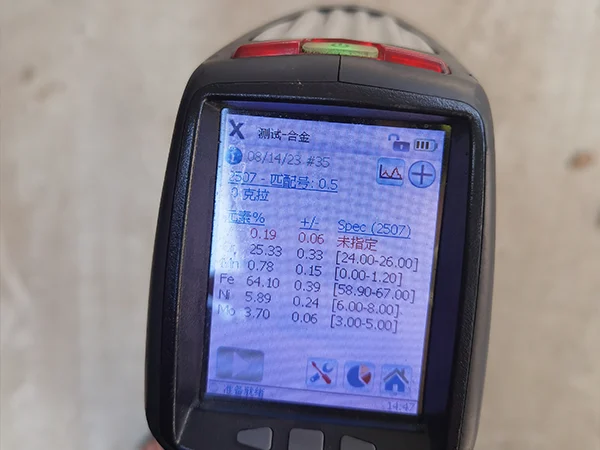

Material tested as 2507

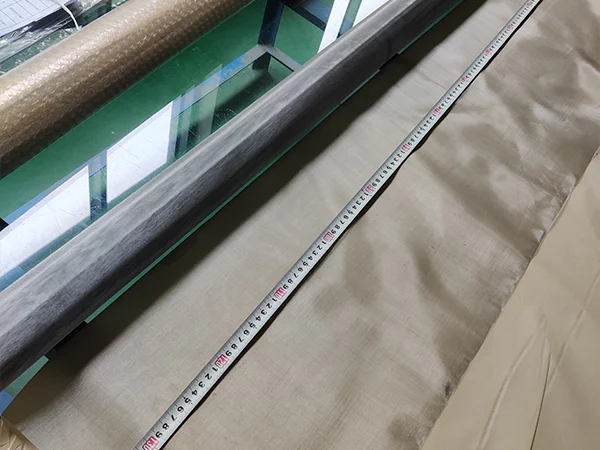

Width measurement is 136.1 cm

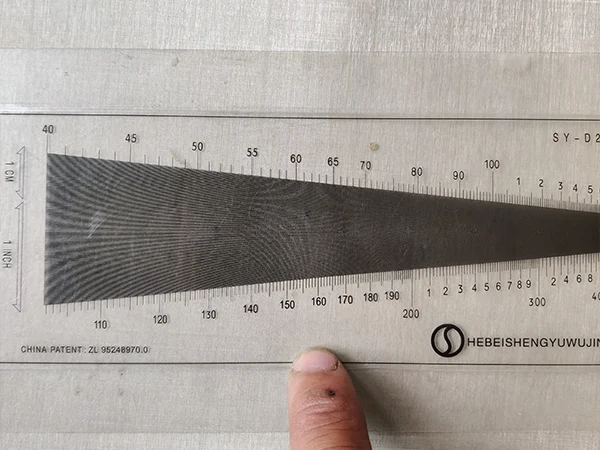

Mesh count measurement is 159

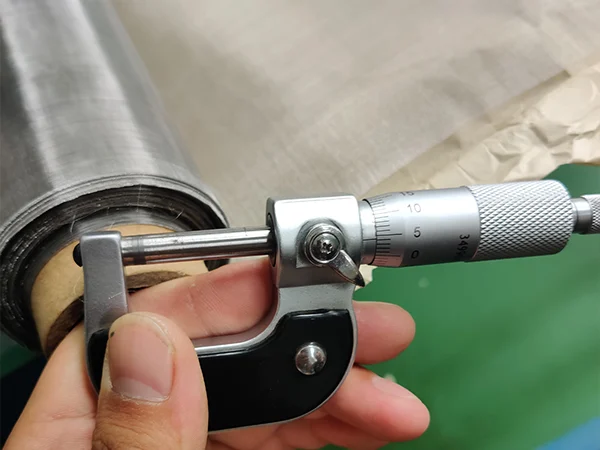

The outer diameter measurement is 0.041 mm
