超薄不銹鋼網

不銹鋼超薄絲網是一種 均勻、堅固性好的超薄編織不銹鋼絲網。 使用精心挑選的特殊不銹鋼合金材料和 採用的最先進的 的編織技術確保了非常緊湊的編織結構,並且絲網的厚度在允許的公差範圍內。 因此,對於高精度印刷要求,進一步提高了絲網的精度。

超薄不銹鋼絲布通常在需要耐熱性和耐腐蝕性時使用 ,並且經常用於需要屏蔽電磁干擾和射頻干擾的應用中。

材質:SS304、304HC、304L、316、316L。

編織: 平紋編織。

應用:廣泛使用 超薄不銹鋼網作為屏蔽材料。

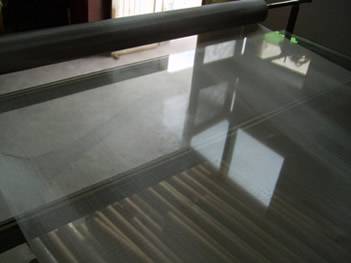

A roll of ultra-thin stainless steel mesh

超薄不銹鋼網捲

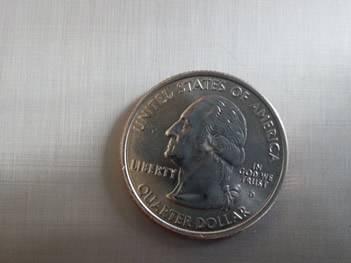

 A piece of ultra-thin stainless steel mesh

超薄不銹鋼網片

Stainless Steel Ultra-thin Wire Mesh

超薄不銹鋼絲網

Ultra-thin stainless steel wire cloth

超薄不銹鋼絲布

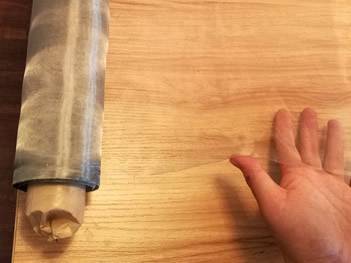

A roll of high transmittance stainless steel wire mesh on a yellow wooden table.

高透光率不銹鋼絲網捲。

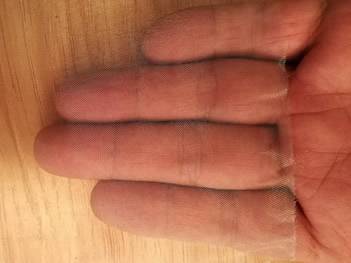

A piece of high transmittance stainless steel wire mesh on a hand, and we can clearly see the texture of the hand through the stainless steel wove mesh.

高透光率的不銹鋼絲網。

超薄不銹鋼絲網
網格/英寸 導線直徑 網格/英寸 導線直徑
Mm Mm
24 0.19 100/50 0.056
30 0.165 105/64 0.063
38 0.114 115/55 0.08
58 0.114 120/76 0.056
70 0.076 130/65 0.043
84 0.063 140/65 0.063
100 0.056 160/80 0.036
130 0.043 170/105 0.043
150 0.034 180/85 0.045
160 0.036 180/85 0.05
180 0.03 180/90 0.03
200 0.028 210/100 0.046
230 0.028 220/110 0.028
270 0.036 235/115 0.043
300 0.03 260/130 0.04
64/38 0.1 300/150 0.028
76/45 0.086 310/160 0.036
84/42 0.063 325/150 0.036
90/43 0.09 325/184 0.028
90/50 0.076 400/205 0.03
